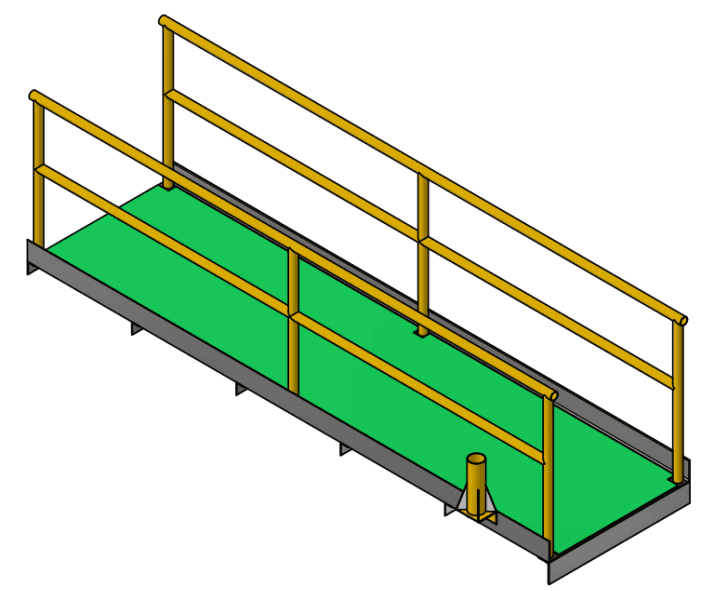

Access Platform 3.5m
Product Description
Need certified overhead access for trench and pit works? The ASC Access Platform delivers safe, compliant movement across or above excavations. Built from fully welded structural steel and rated to 2.5kPa live load and 15kN fall arrest anchorage, it’s designed for real jobsite conditions — with the paperwork to match.
Ideal for confined space entry, pipe installations, and bridge-style trench crossing, this walk-on platform ensures your crews stay safe, visible, and supported during trench activity.
Available Options
This product is available in multiple configurations. Choose from:
- Platform Length (mm): Standard 3.5m or custom to order
- Platform Width (mm): Standardised for trench crossover or adjustable work zones
Key Features
- Certified to 2.5kPa Live Load: Built to withstand continuous personnel use
- Fall Arrest Rated: 15kN anchor compliance for added crew safety
- Welded Steel Frame: Robust CHS and angle construction
- Handrail System: Integrated toe boards, posts, and midrails for edge protection
- QR Code Tracked: Compliance plate linked to engineer certificate and product record
Specifications
- Material: Fully welded Grade 300/350 steel
- Rated Live Load: 2.5kPa
- Fall Arrest Capacity: 15kN anchor load
- Compliance: AS1170.0, AS1170.1, AS4100, AS1657, AS1891.4
Ideal Applications
- Safe overhead crossing for trench and pit works
- Trench shield entry or lateral platform use
- Confined space access over excavations
- Walkway installation for high-access utility trenching
Need Customisation?
Ask us about trench-width adjustment, platform modification, or branded stenciling. Custom CAD designs are available for approval.
🔍 View: Safe Work Australia Model Code of Practice: Excavation work
